Machined Stainless Steel Swage Eyes

Machined Stainless Steel Swage Eyes Machined Stainless Steel Swage Eyes

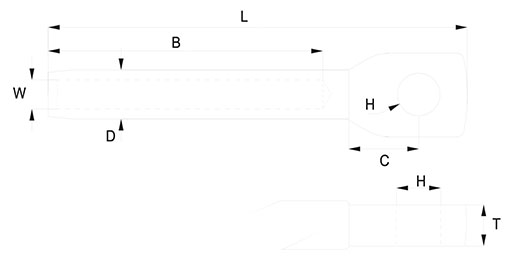

Product Code Wire (mm) H (mm) B (mm) D (mm) C (mm) T (mm) L (mm) Nominal Weight (g)
MSE04 4 8.0 45 7.5 14 6.5 72 23
MSE05 5 9.53 52 9.1 17 7.8 85 42
MSE06 6 11.1 64 12.5 20 9.5 103 100
MSE06US 6 12.7 64 12.5 23 11.5 110 109
MSE07 7 12.7 70 14.3 23 11.5 114 129
MSE08DS 8 12.7 80 16.0 23 11.5 123 152
MSE08 8 14.28 80 16.0 24 13.5 130 178
MSE08US 8 16.0 80 16.0 29 15 134 202
MSE10 10 16.0 100 18.0 29 15 155 245
MSE12 12 19.05 132 21.4 34 17.5 197 462
MSE14 14 22.2 156 25.0 40 21.5 235 721
MSE16 16 25.4 176 28.2 46 23.5 264 1090
MSE16US 16.8 28.6 176 28.2 51 27 274 1430
MSE19 19 28.6 210 34.5 51 27.5 308 1780
MSE22 22 32.0 242 40.3 58 31 356 2704
MSE26 26 35.0 290 45.9 63 33.5 414 3855

Product Features

316 swage eyes from Petersen are exclusively manufactured at the Petersen factory in England. Forged from low carbon stainless steel 316L (1.4404), every Petersen marine swage eye is incredibly strong. Petersen has been a manufacturer of A4 stainless swage eyes for many years and during that time has built an industry leading quality system with full material traceability. Petersen swage eyes can be used with many different wire rope constructions and spiral strand. As a manufacturer of marine swage eyes, Petersen can offer you an affordable, customised swage eye to suit your rigging project.
