Turnbuckle Bodies - Open & Closed Design

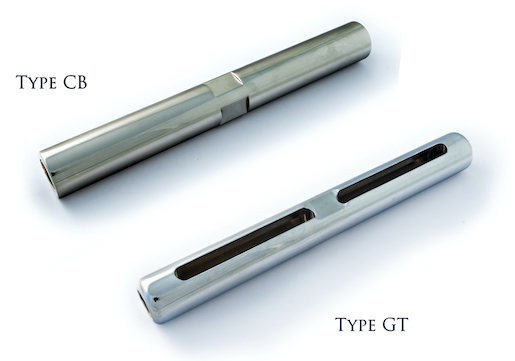

Turnbuckle Bodies - Open & Closed Design Turnbuckle Bodies - Open & Closed Design Technical Drawing
The product code for a turnbuckle body is the body type followed by the thread size. For example, CB5/16 or GT11/4.
Thread (″ Unf) Nominal Wire Size (mm) Body Type CB Body Type HT Body Type GT
OD (mm) L (mm) Weight (g) OD (mm) L (mm) Weight (g) OD (mm) L (mm) Weight (g)
1/4 3 9.5 86 20 * * * 10.9 103 34
5/16 4 12 98 36 * * * 13.8 119 62
3/8 5 15 124 72 * * * 15.8 147 98
7/16 6 17 136 102 * * * 18.8 163 148
1/2 7 19 164 164 * * * 21.9 203 252
5/8 8 / 10 25.4 210 454 * * * 28.0 228 508
3/4 12 28.5 248 626 * * * 31.6 265 736
7/8 14 35 278 955 44.2 316 1252 37.7 310 1149
1 16 38 332 1264 50.5 361 2257 43.6 356 1875
1 1/8 19 44.5 369 2250 56.8 406 3202 49.5 401 2731
1 1/4 22 50.8 400 3290 63.1 451 4269 53.8 443 3425
1 3/8 26 54 460 4337 69.5 496 5846 59.8 476 4766
