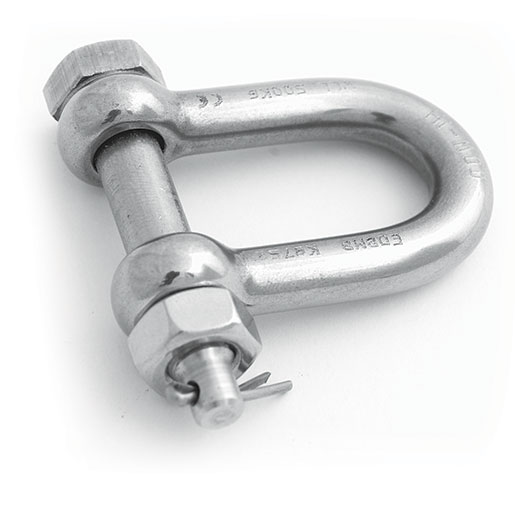

High Corrosion Resistance Stainless Steel D Shackles with Saftey Pin

Product Features

  • Manufactured from stainless steel EN10088 1.4404 (Marine Grade 316L)
  • Excellent for lifting applications where a high level of corrosion resistance is required
  • Factor of Safety 6:1
  • Available with 2 pin types - E Type Safety Pin with Standard Nut (E Type) or Nylok Nut (E Type-NY)
  • Special design of bolt ensures the nut is positioned correctly allowing sufficient room for the cotter pin

Quality Features

  • Every shackle is proof load tested to 2 x WLL and certified at our manufacturing facility in the North East of England
  • All shackles are manufactured in accordance with the Machine Directive 2006/42/EC
  • Inspection certificate BS EN 10204 3.1 available on request
  • High quality finish and excellent polish
  • Manufactured using the latest technology in electrical upset forging

Typical Applications

  • Water utility installations & other corrosive facilities
  • Pump chains and pump lifting
  • Chemical installations - chlorine plants etc
  • General lifting in off-shore applications
  • General lifting and tethering in leisure marine applications
  • General lifting purposes

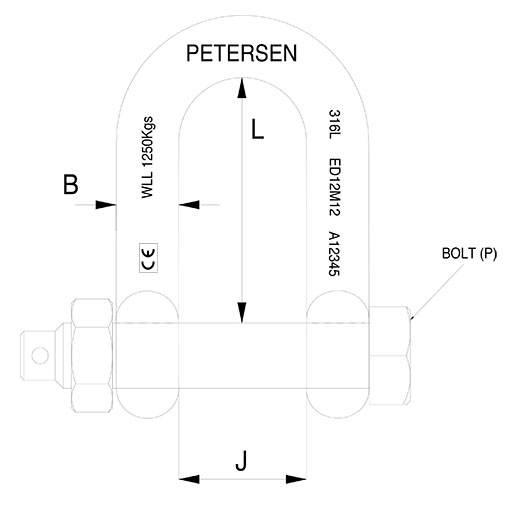

High Corrosion Resistance Stainless Steel D Shackles with Saftey Pin High Corrosion Resistance Stainless Steel D Shackles with Saftey Pin Technical Drawing
Dimensions & WLL Pin Styles & Product Numbers Nominal Weight (g)
WLL (kg) Bolt Size B (mm) J (mm) L (mm) E Type E Type c/w Nylok
350 M6 6.0 13.0 25.0 ED6M6 ED6M6-NY 48
500 M8 8.0 16.0 32.0 ED8M8 ED8M8-NY 75
800 M10 9.5 19.0 38.0 ED10M10 ED10M10-NY 136
1000 M12 11.0 22.0 44.0 ED11M12 ED11M12-NY 212
1250 M12 12.7 26.0 52.0 ED12M12 ED12M12-NY 331
1800 M16 14.3 29.0 58.0 ED14M16 ED14M16-NY 585
2800 M20 16.0 32.0 64.0 ED16M20 ED16M20-NY 760
3300 M22 19.0 38.0 76.0 ED19M22 ED19M22-NY 1180
4500 M24 22.0 44.0 88.0 ED22M24 ED22M24-NY 1750
5000 M27 25.4 50.0 100.0 ED25M27 ED25M27-NY 2600
