Watertight Stainless Steel Locker Latches (4kg Spring)

Code	Description	Key	Material	Head Diameter (mm)	Flange Depth (mm)	Height Above Deck (mm)	Deck Hole Required (mm)	Max Deck Thickness (mm)	Reach (mm)	Operating Limit (mm)	Spring Tension (g)	Weight (g)	Technical Data Downloads

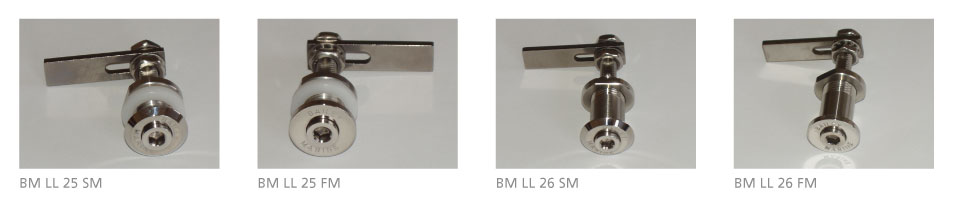

BMLL25**SM	Small latch, ideally suited for locker closure, flooring and sole boards	BML25.8	316 Stainless Steel	25	3	3	16	14	36	30-43	4000	80	BM LL 25 SM technical data
BMLL25**FM	Small latch, ideally suited for locker closure, flooring and sole boards	BML25.8	316 Stainless Steel	25	3	Flush Mounted	16	14	36	30-43	4000	80	BM LL 25 FM technical data
BMLL26**SM	Small latch, ideally suited for locker closure, flooring and sole boards	BML25.8	316 Stainless Steel	25	3	3	16	19-28	36	46-55	4000	85	BM LL 26 SM technical data
BMLL26**FM	Small latch, ideally suited for locker closure, flooring and sole boards	BML25.8	316 Stainless Steel	25	3	Flush Mounted	16	19-28	36	46-55	4000	85	BM LL 26 FM technical data

For a locker latch with:	Replace ** with the following when ordering:
Straight arm	A
Cranked arm	B
